三角带

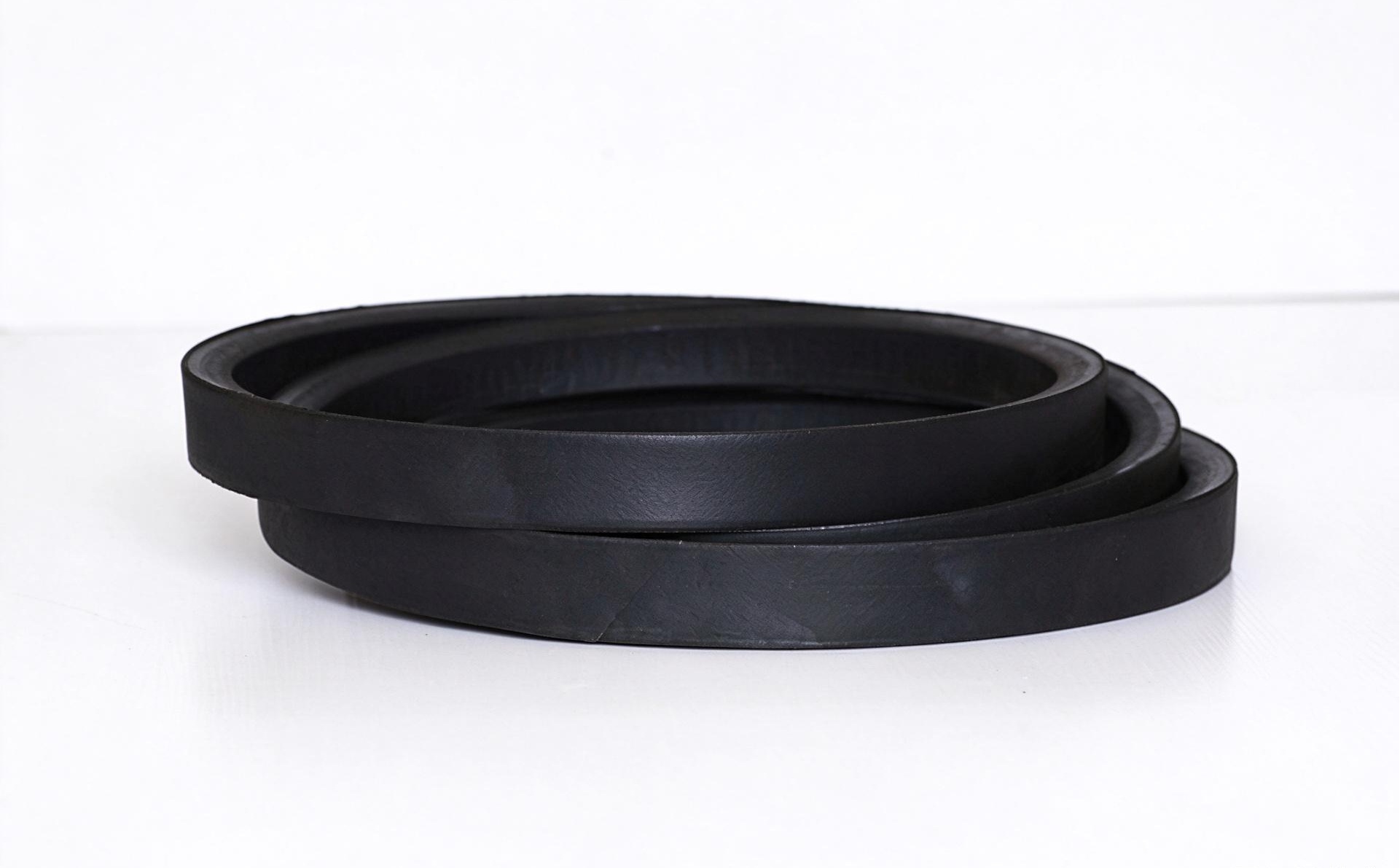

农机V带

AGRICULTRAL V-BELT
EMAIL 在线咨询

Type	Top Width	Curtain Width	Height	Length Coversion	Length Range(in.)	Length Range(mm)	Marking Standards
HI	25.4	23.6	12.7	Li=La-80	39-79	1000-2000	Li
HJ	31.8	29.6	15.1	Li=La-95	55-118	1400-3000	Li
HK	38.1	35.5	17.5	Li=La-110	63-118	1600-3000	Li
HL	44.5	41.4	19.8	Li=La-124	79-157	2000-4000	Li
HM	50.8	47.3	22.2	Li=La-139	79-197	2000-5000	Li

FEATURES:

Agricultural machine V belt has the characteristics of simple structure,easy to manufacture, smooth transmission,absorption vibration, wide adaptation,and convenient maintenance.

MARKING:

Agricultural machinery Vbelt logo,the company according to the length of the inside of the V belt logo,each model conversion relationship is shown in the table above.
